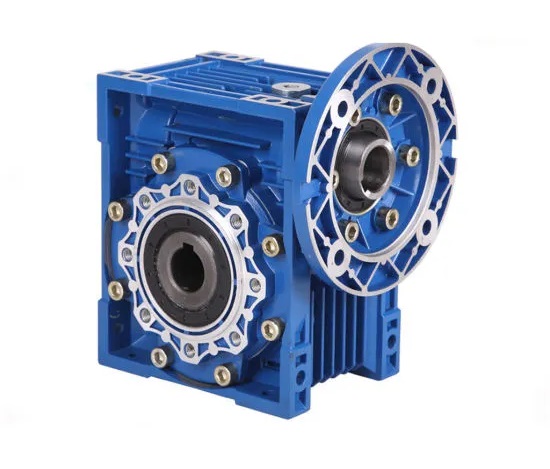

NMRV (Worm Type Gearbox)
TPG-NMRV
Description :
Our worm gear units are characterized by an excellent ratio between installation space and load capacity.
The range includes compact worm gear units up to high-performance gear units. The wide product range
offers possibilities from solo gear units to drive solutions with our motors. Benefit from the know-how of
our experts in the realization of your application and let us advise you on the selection of the optimum
worm gear unit.
Application :
Wooden machinery, packaging machinery, Rubber and plastic machinery, environmental Protection machinery,
engineering machinery, construction machinery, machine tool industry, Ceramic Industry and soon.
| MODEL | RATIO | POWER Kw | POWER HP | FLANGE |
|---|---|---|---|---|
| TPG030 | 7.5-80 | 0.06-0.18KW | 0.08-0.25 | 56B5 / 63B5 |
| TPG040 | 7.5-100 | 0.06-0.55KW | 0.08-0.75 | 63B5 / 71B5 |
| TPG050 | 7.5-100 | 0.12-0.75KW | 0.16-1.0 | 71B5 / 80B5 |
| TPG063 | 7.5-100 | 0.25-1.5KW | 0.33-2.0 | 71B5 / 80B5 / 90B5 |
| TPG075 | 7.5-100 | 0.55-4KW | 0.75-5.0 | 80B5 / 90B5 / 100B5 / 112B5 |
| TPG090 | 7.5-100 | 0.75-4KW | 1.0-5.0 | 90B5 / 100B5 / 112B5 |
| TPG110 | 7.5-100 | 0.75-7.5KW | 1.0-10.0 | 90B5 / 100B5 / 112B5 / 132B5 |
| TPG130 | 7.5-100 | 0.75-11KW | 1.0-15.0 | 100B5/112B5/132B5/160B5 |
| TYPE | Worm Gear Speed Reducer/Worm Gearbox |
|---|---|
| MODEL | TPG NMRV series size:025,030,040,050,063,075,090,110,130,150 |
| RATIO | 5,7.5,10,15,20,25,30,40,50,60,80,100 |
| COLOR | Blue(RAL5010) or on your request |
| MATERIAL | Housing:Aluminum alloy |
| PACKING | Wooden box/Paper carton |
| BEARING | C&U |
| SEAL | SKF Or equivalent |
| WARRANTY | 1 Year |
| INPUT POWER | 0.09Kw-15Kw |
| USAGES | Foodstuffs, Ceramics, Packing, Chemicals, Pharmacy, Plastics, Paper-making, Machine-tools |
| IEC FLANGE | IEC standard flange or on request |
| LUBRICANT | Shell or Equivalent |
